execute Class Reference

Fork a child process or execute an external program. More...

#include <exec.h>

List of all members.

Public Member Functions

 execute ()
 C'tor.
 ~execute ()
 D'tor.
void fork (void)
 Fork a child process.
void clear (void)
 Reset the execute class to default values, kill the child processif one is running.
bool is_child (void)
 Returns true if called by the child.
bool is_parent (void)
 Returns true if called by the parent.
pid_t my_pid (void)
 Returns the PID.
void exit (int code=0)
 Called by the child to exit with a particular code.
void reroute_stdio (void)
 Called by the child to reroute the child's stdin, stdout, and stderr to the parent.
pid_t child_pid (void)
 Returns the child's PID.
void signal_child (int signal_no)
 Send a signal to the child.
void hup_child (void)
 Send a HUP signal to the child.
void kill_child (void)
 Send a KILL signal to the child.
void wait (void)
 Wait for the child to exit.
bool child_started (void) const
 Returns true if the child has been started.
bool child_running (void)
 Returns true if the child is running.
bool child_exited (void)
 Returns true of the child has existed.
bool child_exited_normally (void)
 Returns true if the child has exited normally.
bool child_signaled (void)
 Returns true if the child was signaled.
int child_exit_code (void)
 Return the child's exit code.
int child_signal_no (void)
 If the child was signaled, return the signal number.
void exec (const std::string command)
 Execute a command, rerouting stdin, stdout, and stderr to parent.
int in_fd (void)
 Return a file descriptor for I/O between parent and child.
int out_fd (void)
 Return a file descriptor for I/O between parent a child.
int err_fd (void)
 Return a file descriptor for I/O between parent and child.
bool in_ready (void)
 Check I/O for input.
bool out_ready (void)
 Check I/O for output.
bool err_ready (void)
 Check I/O for output.
bool in_eof (void)
 Check for input EOF.
bool out_eof (void)
 Check for output EOF.
bool err_eof (void)
 Check for err EOF.
int in_read (char *buf, const int len)
 Allow child to read input from in_fd().
int in_write (const char *buf, const int len)
 Allow parent to write output to in_fd().
int out_read (char *buf, const int len)
 Allow parent to read out_fd().
int out_write (const char *buf, const int len)
 Allow child to write to out_fd().
int err_read (char *buf, const int len)
 Allow parent to read from err_fd().
int err_write (const char *buf, const int len)
 Allow child to write to err_fd().
void print (std::ostream &out)
 Dump execute object information -- used for debugging.

Private Member Functions

pid_t check_child_ (void)
 Check the child's status.
bool check_write_ready_ (int fd)
 Return true if the file descriptor is ready to be written to.
bool check_read_ready_ (int fd)
 Return true if the file descriptor has input ready to be read.

Private Attributes

int m_fd1 [2]
int m_fd2 [2]
int m_fd3 [2]
pid_t m_pid
int m_status
bool m_in_eof
bool m_out_eof
bool m_err_eof
bool m_child_started


Detailed Description

Fork a child process or execute an external program.

Definition at line 21 of file exec.h.


Constructor & Destructor Documentation

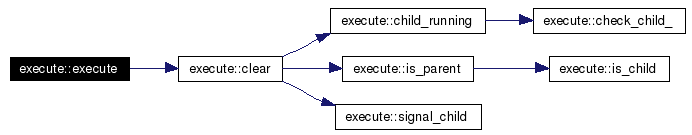

execute::execute  )


C'tor.

Definition at line 33 of file exec.cc.

References clear().

Here is the call graph for this function:

execute::~execute  )


D'tor.

Definition at line 39 of file exec.cc.

References clear().

Here is the call graph for this function:


Member Function Documentation

pid_t execute::check_child_ void   )  [private]


Check the child's status.

Definition at line 201 of file exec.cc.

References m_pid, and m_status.

Referenced by child_exit_code(), child_exited(), child_running(), child_signal_no(), and child_signaled().

bool execute::check_read_ready_ int  fd  )  [private]


Return true if the file descriptor has input ready to be read.

Definition at line 364 of file exec.cc.

Referenced by err_ready(), in_ready(), and out_ready().

bool execute::check_write_ready_ int  fd  )  [private]


Return true if the file descriptor is ready to be written to.

Definition at line 349 of file exec.cc.

Referenced by err_ready(), in_ready(), and out_ready().

int execute::child_exit_code void   )


Return the child's exit code.

Definition at line 261 of file exec.cc.

References check_child_(), and m_status.

Referenced by child_exited_normally(), print(), job_archiver::process(), and test10().

Here is the call graph for this function:

bool execute::child_exited void   )


Returns true of the child has existed.

Definition at line 228 of file exec.cc.

References check_child_().

Referenced by child_exited_normally(), child_signal_no(), print(), and test10().

Here is the call graph for this function:

bool execute::child_exited_normally void   )


Returns true if the child has exited normally.

Definition at line 238 of file exec.cc.

References child_exit_code(), and child_exited().

Referenced by print(), job_archiver::process(), and test10().

Here is the call graph for this function:

pid_t execute::child_pid void   )


Returns the child's PID.

Definition at line 170 of file exec.cc.

References m_pid.

Referenced by job_archiver::start().

bool execute::child_running void   )


Returns true if the child is running.

Definition at line 217 of file exec.cc.

References check_child_().

Referenced by clear(), job_archiver::end(), err_read(), err_write(), in_read(), in_write(), out_read(), out_write(), print(), job_archiver::process(), and test10().

Here is the call graph for this function:

int execute::child_signal_no void   )


If the child was signaled, return the signal number.

Definition at line 273 of file exec.cc.

References check_child_(), child_exited(), and m_status.

Referenced by print(), job_archiver::process(), and test10().

Here is the call graph for this function:

bool execute::child_signaled void   )


Returns true if the child was signaled.

Definition at line 250 of file exec.cc.

References check_child_(), and m_status.

Referenced by print(), job_archiver::process(), and test10().

Here is the call graph for this function:

bool execute::child_started void   )  const


Returns true if the child has been started.

Definition at line 211 of file exec.cc.

References m_child_started.

Referenced by err_read(), err_write(), in_read(), in_write(), out_read(), and out_write().

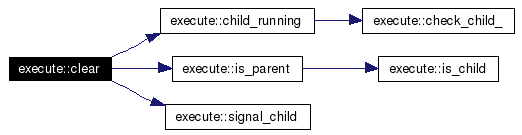

void execute::clear void   )


Reset the execute class to default values, kill the child processif one is running.

Definition at line 46 of file exec.cc.

References child_running(), is_parent(), m_child_started, m_err_eof, m_fd1, m_fd2, m_fd3, m_in_eof, m_out_eof, m_pid, m_status, and signal_child().

Referenced by job_archiver::end(), execute(), fork(), and ~execute().

Here is the call graph for this function:

bool execute::err_eof void   )


Check for err EOF.

Definition at line 464 of file exec.cc.

References m_err_eof.

Referenced by job_archiver::mf_process_child_io(), and test10().

int execute::err_fd void   )


Return a file descriptor for I/O between parent and child.

If called by the parent, a readable file descriptor is returned. If called by the child, a writeable file descriptor is returned.

If reroute_stdio() was called by the child, then the returned file descriptior is the same as that used by the child for stderr.

Definition at line 336 of file exec.cc.

References is_parent(), and m_fd3.

Referenced by err_read(), err_ready(), err_write(), print(), and test10().

Here is the call graph for this function:

int execute::err_read char *  buf,
const int  len


Allow parent to read from err_fd().

Definition at line 538 of file exec.cc.

References child_running(), child_started(), err_fd(), and m_err_eof.

Referenced by job_archiver::mf_process_child_io(), and test10().

Here is the call graph for this function:

bool execute::err_ready void   )


Check I/O for output.

If called by the parent, check if output from child is ready to be read. If called by the child, check if output to parent is ready to be written to.

If reroute_stdio() was called by the child, then this pipe is the same as used by the child for stderr.

Definition at line 439 of file exec.cc.

References check_read_ready_(), check_write_ready_(), err_fd(), and is_parent().

Referenced by job_archiver::mf_process_child_io(), print(), and test10().

Here is the call graph for this function:

int execute::err_write const char *  buf,
const int  len


Allow child to write to err_fd().

Definition at line 555 of file exec.cc.

References child_running(), child_started(), err_fd(), and m_err_eof.

Here is the call graph for this function:

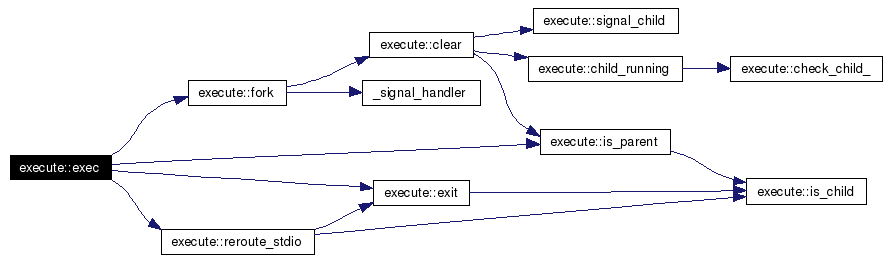

void execute::exec const std::string  command  )


Execute a command, rerouting stdin, stdout, and stderr to parent.

Definition at line 379 of file exec.cc.

References exit(), fork(), is_parent(), and reroute_stdio().

Referenced by job_archiver::mf_do_chores().

Here is the call graph for this function:

void execute::exit int  code = 0  )


Called by the child to exit with a particular code.

Definition at line 130 of file exec.cc.

References is_child().

Referenced by exec(), reroute_stdio(), job_archiver::start(), and test10().

Here is the call graph for this function:

void execute::fork void   )


Fork a child process.

Definition at line 72 of file exec.cc.

References _signal_handler(), clear(), ERROR, m_child_started, m_fd1, m_fd2, m_fd3, and m_pid.

Referenced by exec(), job_archiver::start(), and test10().

Here is the call graph for this function:

void execute::hup_child void   )


Send a HUP signal to the child.

Definition at line 182 of file exec.cc.

References signal_child().

Here is the call graph for this function:

bool execute::in_eof void   )


Check for input EOF.

Definition at line 452 of file exec.cc.

References m_in_eof.

Referenced by test10().

int execute::in_fd void   )


Return a file descriptor for I/O between parent and child.

If called by the parent, a writeable file descriptor is returned. If called by the child, a readable file descriptor is returned.

If retroute_stdio() was called by the child, then the returned file descriptor is the same as that used by the child for stdin.

Definition at line 296 of file exec.cc.

References is_parent(), and m_fd1.

Referenced by in_read(), in_ready(), in_write(), print(), and test10().

Here is the call graph for this function:

int execute::in_read char *  buf,
const int  len


Allow child to read input from in_fd().

Definition at line 470 of file exec.cc.

References child_running(), child_started(), in_fd(), and m_in_eof.

Here is the call graph for this function:

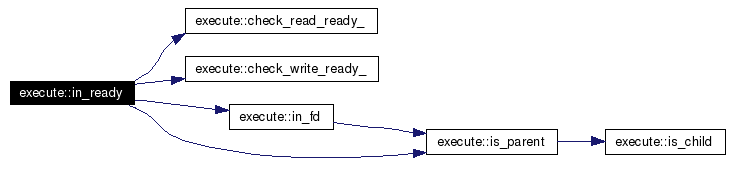

bool execute::in_ready void   )


Check I/O for input.

If called by the parent, check if ready to write to child's input. If called by the child, check if input is ready to be read.

If reroute_stdio() was called by the child, then this pipe is the same as used by the child for stdin.

Definition at line 399 of file exec.cc.

References check_read_ready_(), check_write_ready_(), in_fd(), and is_parent().

Referenced by print(), and test10().

Here is the call graph for this function:

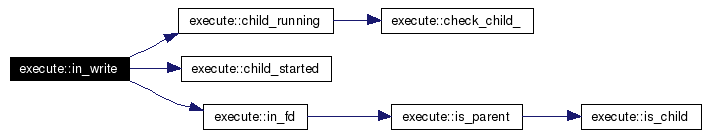

int execute::in_write const char *  buf,
const int  len


Allow parent to write output to in_fd().

Definition at line 487 of file exec.cc.

References child_running(), child_started(), in_fd(), and m_in_eof.

Referenced by test10().

Here is the call graph for this function:

bool execute::is_child void   )


Returns true if called by the child.

Definition at line 101 of file exec.cc.

References m_pid.

Referenced by exit(), is_parent(), print(), reroute_stdio(), job_archiver::start(), and test10().

bool execute::is_parent void   )


Returns true if called by the parent.

Definition at line 110 of file exec.cc.

References is_child().

Referenced by clear(), err_fd(), err_ready(), exec(), in_fd(), in_ready(), out_fd(), out_ready(), print(), test10(), and wait().

Here is the call graph for this function:

void execute::kill_child void   )


Send a KILL signal to the child.

Definition at line 188 of file exec.cc.

References signal_child().

Referenced by job_archiver::end().

Here is the call graph for this function:

pid_t execute::my_pid void   )


Returns the PID.

Definition at line 120 of file exec.cc.

References pid().

Referenced by job_archiver::clear(), and print().

Here is the call graph for this function:

bool execute::out_eof void   )


Check for output EOF.

Definition at line 458 of file exec.cc.

References m_out_eof.

Referenced by job_archiver::mf_process_child_io(), and test10().

int execute::out_fd void   )


Return a file descriptor for I/O between parent a child.

If called by the parent, a readable file descriptor is returned. If called by the child, a writable file descriptor is returned.

If reroute_stdio() was called by the child, then the returned file descriptor is the same as that used by the child for stdout.

Definition at line 316 of file exec.cc.

References is_parent(), and m_fd2.

Referenced by out_read(), out_ready(), out_write(), print(), and test10().

Here is the call graph for this function:

int execute::out_read char *  buf,
const int  len


Allow parent to read out_fd().

Definition at line 504 of file exec.cc.

References child_running(), child_started(), m_out_eof, and out_fd().

Referenced by job_archiver::mf_process_child_io(), and test10().

Here is the call graph for this function:

bool execute::out_ready void   )


Check I/O for output.

If called by the parent, check if output from child is ready to be read. If called by the child, check if output to parent is ready to be written to.

If reroute_stdio() was called by the child, then this pipe is the same as used by the child for stdout.

Definition at line 419 of file exec.cc.

References check_read_ready_(), check_write_ready_(), is_parent(), and out_fd().

Referenced by job_archiver::mf_process_child_io(), print(), and test10().

Here is the call graph for this function:

int execute::out_write const char *  buf,
const int  len


Allow child to write to out_fd().

Definition at line 521 of file exec.cc.

References child_running(), child_started(), m_out_eof, and out_fd().

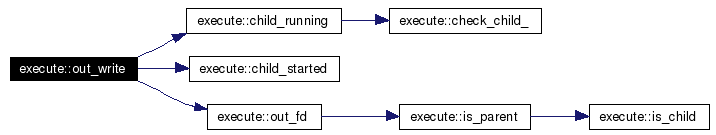

Here is the call graph for this function:

void execute::print std::ostream &  out  )


Dump execute object information -- used for debugging.

Definition at line 572 of file exec.cc.

References child_exit_code(), child_exited(), child_exited_normally(), child_running(), child_signal_no(), child_signaled(), err_fd(), err_ready(), in_fd(), in_ready(), is_child(), is_parent(), my_pid(), out_fd(), and out_ready().

Referenced by operator<<().

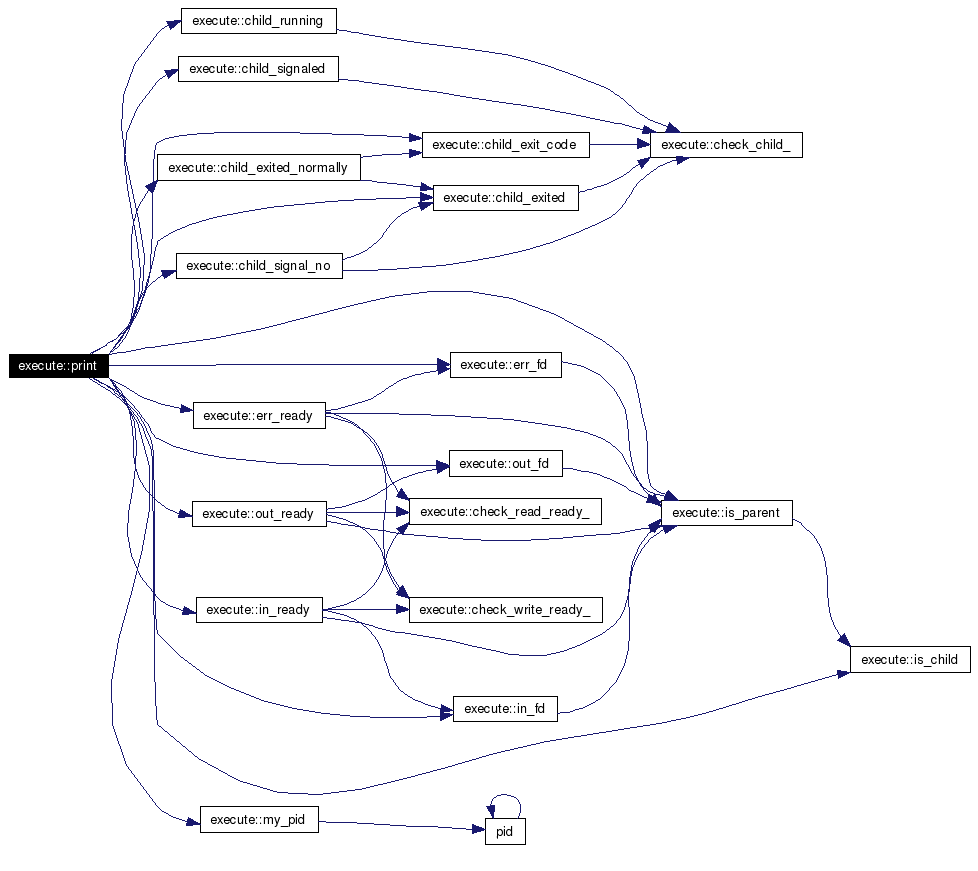

Here is the call graph for this function:

void execute::reroute_stdio void   )


Called by the child to reroute the child's stdin, stdout, and stderr to the parent.

Definition at line 138 of file exec.cc.

References ERROR_INSTANCE, exit(), is_child(), m_fd1, m_fd2, and m_fd3.

Referenced by exec(), and job_archiver::start().

Here is the call graph for this function:

void execute::signal_child int  signal_no  )


Send a signal to the child.

Definition at line 176 of file exec.cc.

References m_pid.

Referenced by clear(), hup_child(), and kill_child().

void execute::wait void   )


Wait for the child to exit.

Definition at line 194 of file exec.cc.

References is_parent(), and m_status.

Referenced by test10().

Here is the call graph for this function:


Member Data Documentation

bool execute::m_child_started [private]


Definition at line 82 of file exec.h.

Referenced by child_started(), clear(), and fork().

bool execute::m_err_eof [private]


Definition at line 81 of file exec.h.

Referenced by clear(), err_eof(), err_read(), and err_write().

int execute::m_fd1[2] [private]


Definition at line 74 of file exec.h.

Referenced by clear(), fork(), in_fd(), and reroute_stdio().

int execute::m_fd2[2] [private]


Definition at line 75 of file exec.h.

Referenced by clear(), fork(), out_fd(), and reroute_stdio().

int execute::m_fd3[2] [private]


Definition at line 76 of file exec.h.

Referenced by clear(), err_fd(), fork(), and reroute_stdio().

bool execute::m_in_eof [private]


Definition at line 79 of file exec.h.

Referenced by clear(), in_eof(), in_read(), and in_write().

bool execute::m_out_eof [private]


Definition at line 80 of file exec.h.

Referenced by clear(), out_eof(), out_read(), and out_write().

pid_t execute::m_pid [private]


Definition at line 77 of file exec.h.

Referenced by check_child_(), child_pid(), clear(), fork(), is_child(), and signal_child().

int execute::m_status [private]


Definition at line 78 of file exec.h.

Referenced by check_child_(), child_exit_code(), child_signal_no(), child_signaled(), clear(), and wait().


The documentation for this class was generated from the following files:
Generated on Wed Jun 21 11:13:31 2006 for rvm by  doxygen 1.4.2
